Description

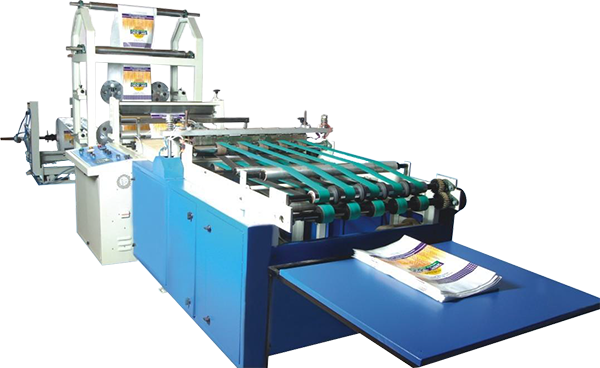

N-TEX High Speed Fully Automatic Woven Sacks Laminated Fabric Cutting Machine to Cut Laminated HDPE / PP Fabric Rolls, It comes with Servo Driven Motor and Controller (for better accuracy) with Control Panel and Digital Cut Length size setting with number of bags Indication, Bag cut through Blade.
Features
- Heavy Duty Body for Sturdy & Long Life
- Easy to Operate
- Fully Automatic
- Less Man Power Required to Operate
- High Accuracy / Precision
- High Production
- Digital Bag Counting
Included
- Pneumatic lifting for loading of Rolls
- Photo Cell to cut printed bag
Utility
- Air Compressor Required
Technical Specifications
| Working Width | 32” |
|---|---|
| Speed | 55 Mtr./Min. |
| Maximum Length | 80” |
| Cutting Mode | Through Blade (Scissor Type) |
| Controller | 9.7 Nm. Servo with Digital Size Setting |
| Structure | Heavy Duty Casting Body |
| Main Motor | A.C. |
| Material | HDPE / PP etc. |
| Electrical Supply | 440v A.C. / 3 Phase / 50 Hz, Earthing below 1 Volt |
| Connected Load | 7.0 kw |
| Net Weight | 1200. Kgs. |
| Dimension | 3700 (L) x 1700 (W) x 1600 mm (H) |
