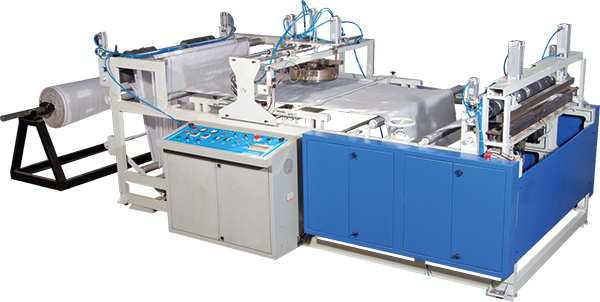

FIBC's Fabric Cutting Machine with Online
Spout Making Arrangement
Optional
- EPC for Spout
- Spout
Specifications
| Model | Length | Width | Speed mtr./min | Connected Load | Main Motor | Control System | Dimension (L x W x H) | Weight (Approx.) |
|---|---|---|---|---|---|---|---|---|
| Jumbo-44 | 500-4000 | 1200 | 25* | 10 Kw | A.C | Servo 2Kw | 5150 x 2200 x 1550 | 1500 Kgs. |
| Jumbo-88 | 500-4000 | 2200 | 25* | 15 Kw | A.C | Servo 3Kw | 5150 x 3200 x 1550 | 1700 Kgs. |
Note: *
- Depending on type of Material, Gauge & Length of Bag.
- All Dimension in mm.
- Shown Accessories is not part of standard Machine/equipments.
