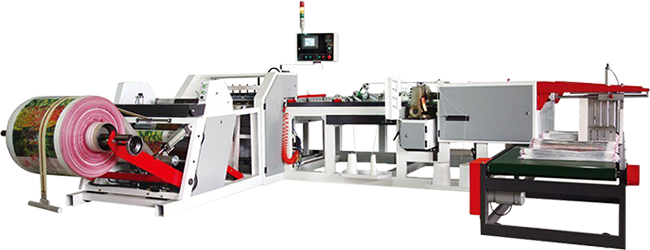

Woven Sacks Automatic Bag Conversion Line

Delivering Excellence
through Innovation

HDPE / PP
Automatic Woven Bags Conversion
Line - BCS

To straighten all types of M.S. / Aluminum Pipes(tubes)
which are used in tape / thread winding applications.

Download Brochure
Size: 510 KBWatch Video

Description

N-TEX Automatic Woven Sacks Roll to Bag Conversion Line complete with all standard components and standard accessories.

Areas of Application

To Make / Cut and Stitch

  • Laminated / Non Laminated HDPE / PP Woven Sacks Raffia Bags from Woven Sacks Roll

Production Capacity

Up to 28 to 50 Bags / Minute (Speed depend on Bag Cut Length / Size)

Special Feature

Magnetic Bag Griper at 90°

Major Specifications

General Performance

Diameter of Unwinding Cloth1400 mm Maximum
Width of Unwinding Cloth300 - 850 mm Applicable
Cutting Length500 - 1400 mm Applicable ± 1 mm
Production Capacity28 - 50 Bags / Minute (depend on the bag Cut Length / Size)

First Feeding Roller

Driven Motor1 HP AC Motor With Inverter Control
Feeding TypeAuto Control, Non-Stop Feeding Type
Tension ControlDancing Roller

Second Feeding Roller (Cutting Length Feeding)

Driven MotorMitsubishi 3 HP Servo Motor
Feeding SpeedAuto Changing Control By Production Setting

Cutting Unit

Cutting KnifeFlat Type High Quality Alloy Steel Cutter
Bag Mouth Auto - Open Device1 Set
Cutter Driven TypeCrank Driven Type
Cutter Driven Motor1 HP AC Motor With Inverter Control
90 Degrees Transfer Unit
90 Degrees Transfer Type4 Sets of Grippers with Magnets Moved through Sliding Tracks
Driven MotorMitsubishi 3 HP Servo Motor

Folding & Sewing Unit

Sewing UnitNew Long DKN-3W (Double Stitching)
Stitching Range5.0 – 9 mm
Folding DeviceSingle Fold
Folding Width20 – 30 mm Adjustable
Main Conveyor Driven Motor1 HP AC Motor With Inverter Control
Sewing Machine Driven Motor1 HP AC Motor With Inverter Control

Stack & Delivery Unit

Bag Delivery (Every 25 or 50 bags)Counting Stack Type Belt Conveyor (Improved)
Bag Delivery Driven Motor1/2 HP AC Motor With Magnetic Brake

Control System

Conch (Taiwan)Display Screen Interface
Keycene (Japan)PLC Control Type

Standard Accessories/Equipment

Sewing Thread Broken AlarmEnclosed (4 sets for Double Stitching)
EPC (Edge Position Controller)Enclosed (Hydraulic Type)
Mark Reading Sensor (For Pre-printed Roll)Enclosed

Power Consumption

Rated Power Capacity11.4 kw
Actual Power Consumption9.4 kw

Dimension

LengthWidthHeightWeight
4850 mm3880 mm1180 mm2300 kgs

Optional Equipment (Not included in the amount)

Double Folding DeviceUS$ 500 - (NET)
Cold Cutting SystemUS$ 600 - (NET)
Zigzag Type High quality alloy steel Cutter(incl. cutting frame & tubular heater)US$ 700 - (NET)
3HP Air CompressorUS$ 1,000 - (NET)
Anti-Static (Static Eliminate) Device(Double Sides)US$ 400 - (NET)
Voltage Regulator 15KVA, 3 phaseUS$ 800 - (NET)
